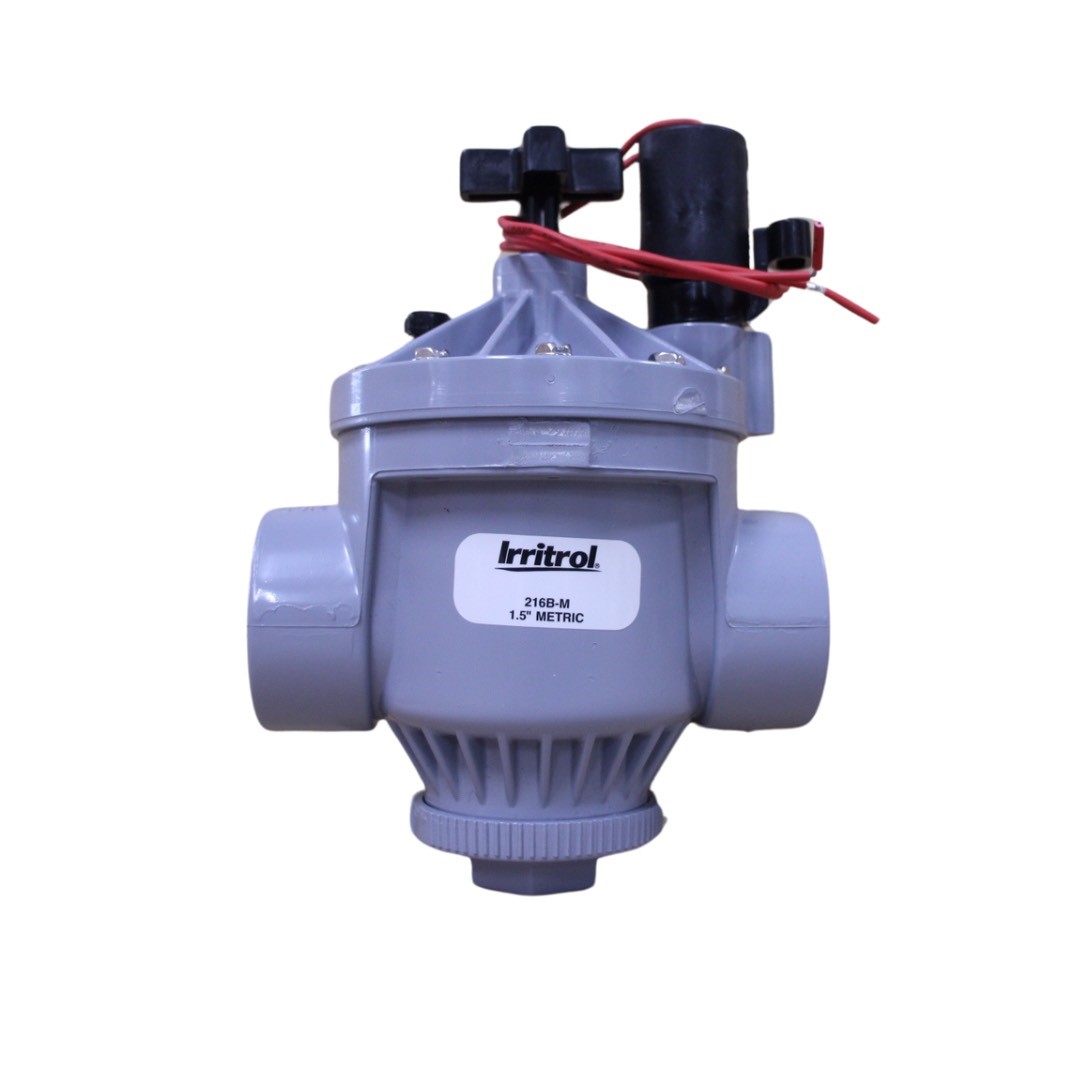

Irritrol 40mm Solenoid 216MT With Flow Control

Description

Application

These durable, heavy-duty commercial valves offer a selection of key features designed to provide reliable, cost-effective performance under the most challenging conditions.

Features

• Double-beaded diaphragmprovides leak-proof seal.
• High-strength ribbed bonnet andbottom inlet.
• Manual internal and externalbleed.
• Slow-closing design reduceswater hammer.
• Flow control allows precise flowadjustment and manual shutoff.
• Heavy-duty, construction.Corrosion- and UV-resistant PVC with stainless steel spring and hardware.
• Threaded inlet plug O-ring sealprevents leaks.
• Captive plunger feature eliminatesloose parts in solenoid.
• Easily serviced withoutremoval from the system.
• Unique three-way stainless steelbonnet screws accept Phillips, flatbladeand hex-driver tools.

Operating Specifications

• FlowRange: 80 – 450 L/m.
• PressureRange: 140 – 1034 kPa

Electrical Specifications

• Solenoid: 24 VAC.
• Inrush volt-amp: 24 VAC – 11.50 VA.

• Inrush current: 0.34 amp.
• Holding volt-amp: 24 VAC – 5.75 VA.

• Holding current: 0.2 amp.
