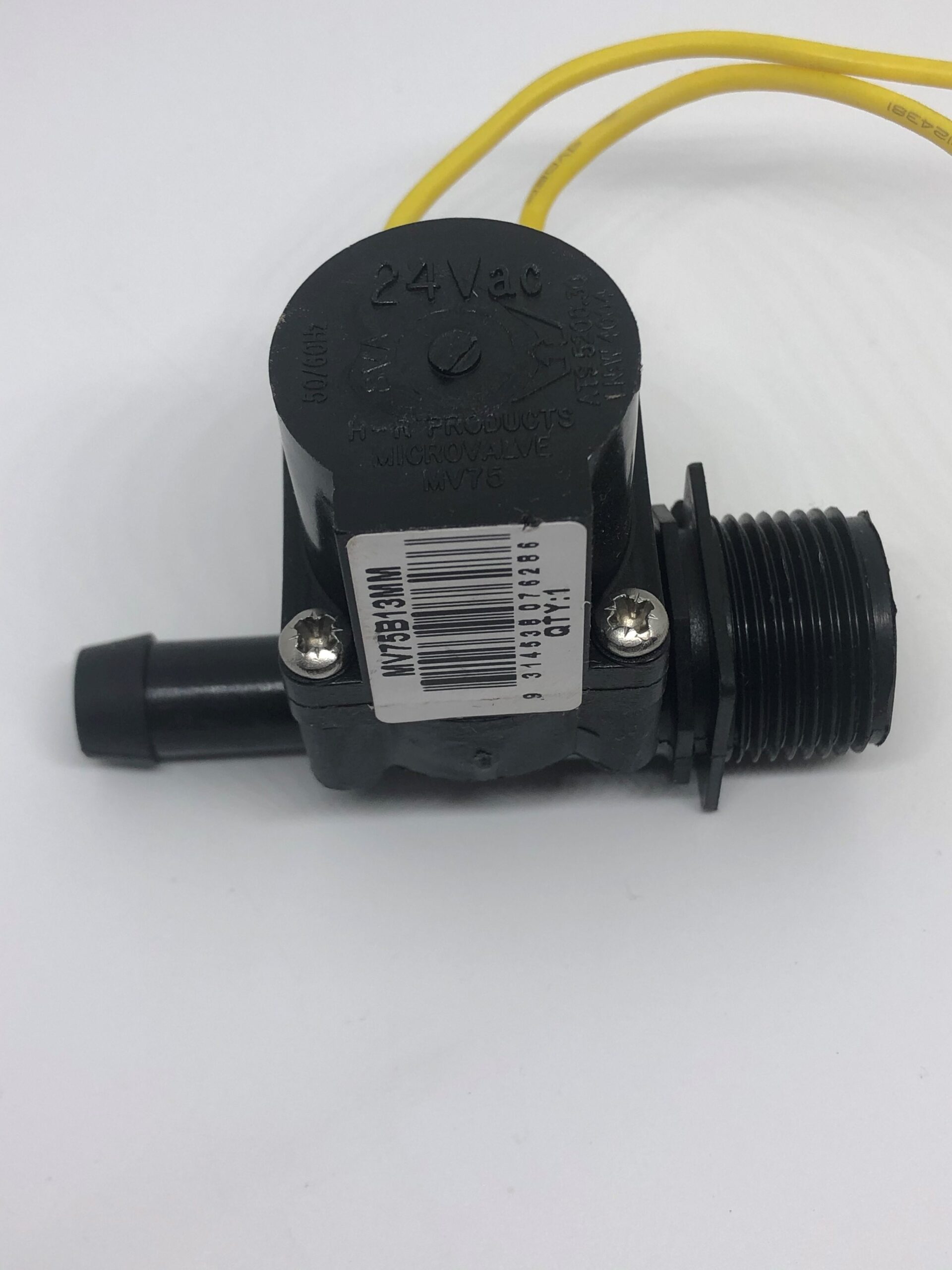

Micro Solenoid Valve MV75 13mm Barb



Mini control valve for use in drip or spray/jet home watering systems.

  • 20mm male BSP thread inlet
  • 13mm barbed outlet
  • Internal filter
  • Can be used with low density polyethylene
  • Simple operation allows trouble free performance
  • Heavy duty engineering plastic construction



  • Australian made
  • Working pressure range 20-1400kPa

Electrical Specifications:

  • Solenoid: 24volt AC, 50Hz
  • Inrush current: 0.5amp
  • Holding current: 0.33amp

Additional information

Weight .125 kg
Dimensions 7.5 × 6 × 7 cm
