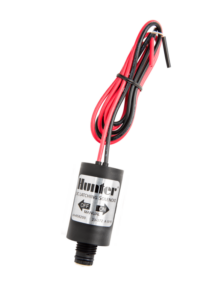

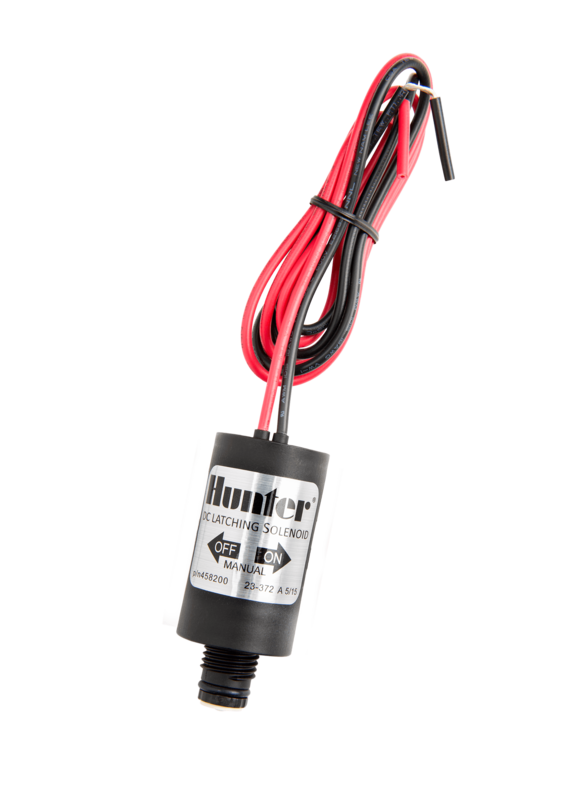

Hunter DC Solenoid Latching Coil

Hunter DC Solenoid Latching Coil

$35.25

Hunter DC latching DC solenoid coil for battery operated controllers

Suits Hunter solenoids only

Not suitable for AC mains powered controllers

Categories: ,

Description

Hunter DC Solenoid Latching Coil

DC Solenoid

Hunter DC latching coil for battery operated controllers

Suits Hunter solenoids valves only

Wire size = 1.0 mm

Maximum wire distance between solenoid and controller = 30 metres

P/N 458200

•    Minimum opening/operating voltage: 6 VDC
•    Maximum recommended voltage: 9 VDC
•    Coil resistance: 4.8 ohms nominal
•    Maximum operating pressure: 13.79 bar; 1379 kPa
•    Wire leads: 45 cm of 0.8 mm2 Black and Red UL-approved wire

Height: 7 cm
Width: 2.5 cm
Depth: 2.5 cm

See more information

See our full range of DC equipment

Additional information

Weight .231 kg
Dimensions 21.5 × 28 × 5 cm
