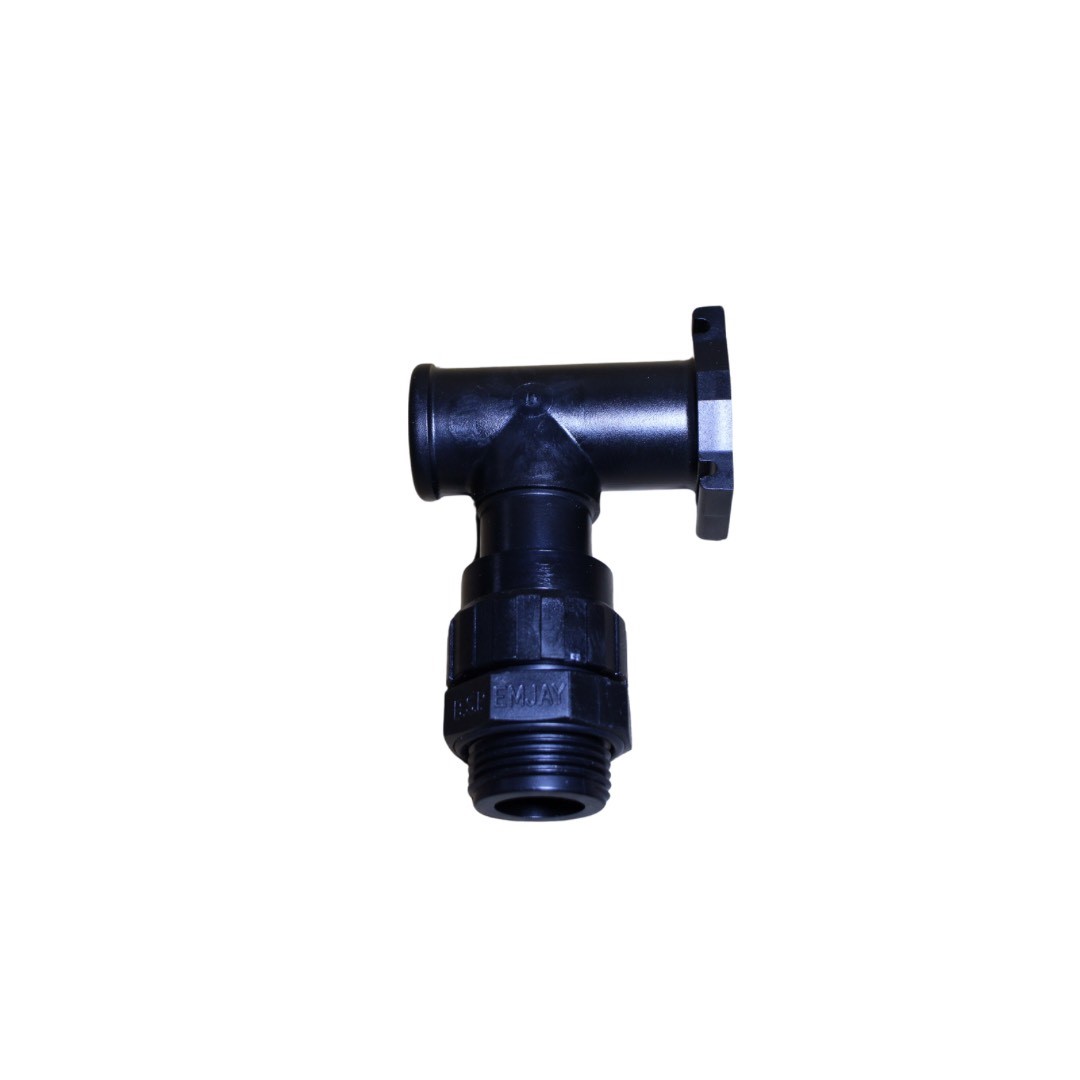

Emjay Manifold Elbow

Emjay Manifold Elbow


The Modular Emjay Manifold Fittings stands out as a strong, adaptable, and user-friendly solution designed for irrigation valves. This versatile system has a large range of fittings which allow for numerous configurations and setups.


Emjay Manifold Elbow


  • Multiple Assembly Configurations
  • Quick Install
  • No Glue
  • Easy Valve Removal
  • Reduced Stress on Valves
  • UV Resistant
  • 1400kpa Maximum Operating Pressure

The Union Manifold Fittings have a nut and separate nipple in place of the male thread. This enables the user to remove a valve from the manifold by unscrewing the nipple and taking the valve out without disassembling the manifold itself. This is particularly useful in valve boxes or installations where space is tight.

The Union fittings have ‘O’rings on the sealing faces of the fittings and the nipple to ensure a leak-proof seal without stressing the female thread of the valve by over tightening. All Union Fittings are supplied complete with the specially designed Manifold Nipple. This nipple has a 1” Male BSP thread on the valve side and a 1” ACME thread on the manifold side. To ensure a leak-proof seal, only this nipple can be used with the Emjay Manifold Union Fittings.

Two Clips and a coupling are needed on each join except for the inlet and end cap which have built-in couplings. The end cap is needed if the manifold is made up of crosses or tees rather than an elbow.


See our full range of manifold fittings

See more information

Additional information

Weight .120 kg
Dimensions 10 × 13 × 3 cm
